Mounting plate for screw fixing with Euro screws - 342.22.094

HAFELE

Mounting plate for screw fixing with Euro screws - 342.22.094 by Hafele — a reliable mounting solution for Blum hinges.

Properties

Product Code: 342.22.094
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
342.22.094_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

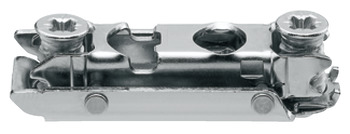

The Mounting plate for screw fixing with Euro screws - 342.22.094 by Hafele represents a refined fusion of quality and functionality. Made from steel, this mounting plate is designed for various hinge systems including Blum Clip Top Blumotion concealed hinges, Clip Top, and Clip. Its nickel-plated finish not only enhances its aesthetic appeal but also increases its durability.

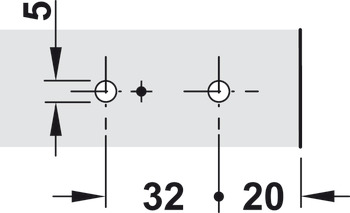

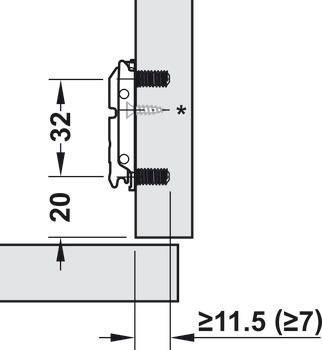

The mounting plate features a drill hole diameter of 5 mm, ensuring an easy installation process. With a screw distance of 32 mm and an edge distance of 20 mm, it accommodates a variety of mounting scenarios. The side adjustment capability allows for ±2 mm adjustment when used for front fixing, while height adjustment via eccentric provides an additional ±2 mm, enhancing precision and ease of use.

The Mounting plate for screw fixing with Euro screws - 342.22.094 will simplify your mounting processes and provide a reliable solution. Trust in Hafele's quality for your needs.
