LED strip light 24 V 2-pin IP67 - 833.03.130

HAFELE

LED strip light 24 V 2-pin IP67 - 833.03.130 by Hafele — A high-efficiency lighting solution for various environments.

Properties

Product Code: 833.03.130
Category: Light

Material Properties

Used Material:
Plastic
Durability:
60000 hours

Product Attribute Symbols

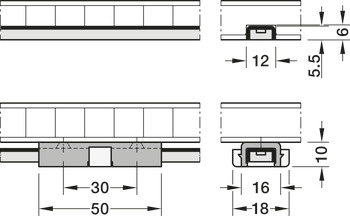

Dimensions

Length (cm): 0.3
Width (cm): 1.2
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_TR
  • 833.03.130_Safety notes
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

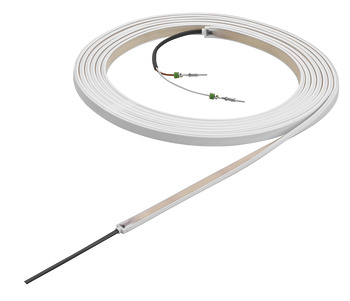

The LED strip light 24 V 2-pin IP67 - 833.03.130 by Hafele represents a refined fusion of quality and functionality. Operating at a nominal voltage of 24V, this strip light ensures energy efficiency while providing a durable solution for various applications. Made from high-quality plastic and rated IP67, it is resistant to water and dust. The COB-LED technology allows for a continuous phosphor coating over all individual LEDs, resulting in a uniform light output without visible light points.

With a lifespan of 60000 hours, this product offers a wattage of 10W/m, delivering a luminous flux of 454 lm/m, which creates a warm and inviting atmosphere. The color rendering index of 90 Ra ensures that colors are accurately represented, while the dimmable feature allows for adjustable lighting levels to suit any mood.



This LED strip light is designed for recess mounting in milled grooves and should not be installed using impact tools. When cutting the strip to size, ensure to cut at the Y area with a generous safety allowance to maintain illumination. The product comes with a 2 x 0.25 m soldered connection.

Color control can be achieved via the Häfele Connect Mesh app, enhancing the versatility of this product. The LED strip light by Hafele combines aesthetics with functionality, making it an ideal choice for any lighting need.
