Railing System - Brass

Inclined bracket with adjustable carrier arm - 770.75.530

HAFELE

Inclined bracket with adjustable carrier arm - 770.75.530 by Hafele — This bracket provides a reliable solution for mounting wooden shelves securely.

Properties

Product Code: 770.75.530
Category: Railing System - Brass

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): 7
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR
770.75.530_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

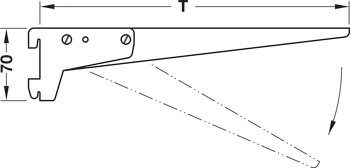

The Inclined bracket with adjustable carrier arm - 770.75.530 by Hafele represents a refined fusion of quality and functionality. This bracket can support up to 55 kg, making it a robust choice for various applications. Made from durable steel, it features a height of 70 mm, ensuring ease of installation. With adjustable angles of 10°, 20°, and 30°, it offers versatility for different mounting needs.

Designed for screw fixing of surface-mounted wooden shelves, this bracket is compatible with single or double slotted wall channels and columns, allowing for installation at 50 mm intervals. The slotted screw holes (10 x 5 mm) facilitate straightforward mounting, providing a significant advantage for users.

The specified load bearing capacity applies with evenly distributed load per bracket. The Inclined bracket with adjustable carrier arm - 770.75.530 is a reliable choice for those seeking a combination of strength and functionality.
