Hoffmann dovetail key for interior fitting - 267.76.313

HAFELE

Download Product ID Card

Download Product Files

Hoffmann dovetail key for interior fitting - 267.76.313 by Hafele — A perfect solution for interior connections.

Properties

Product Code: 267.76.313
Category: Worktop & Panel Connectors

Material Properties

Used Material:
Plastic
Durability:
No Information

Product Attribute Symbols

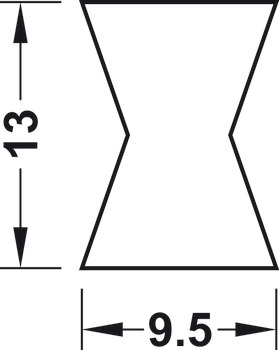

Dimensions

Length (cm): 1.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

267.76.313_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

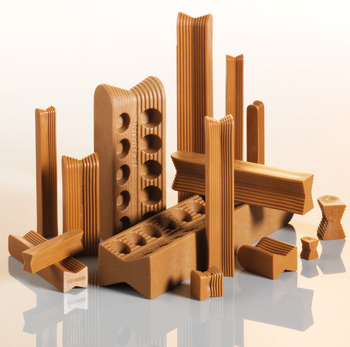

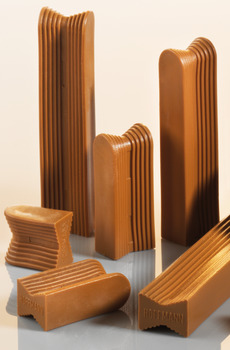

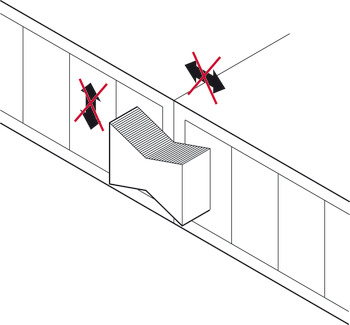

The Hoffmann dovetail key for interior fitting - 267.76.313 by Hafele represents a refined fusion of quality and functionality. This product allows you to mill dovetail grooves into both workpieces, determining the required size (W1 to W4) and length of the connector for connection. The connectors are press-fitted into the two milled grooves, using the rounded connector side as a positioning aid. The workpieces are precisely aligned horizontally and vertically during this process, and the serrated inner surfaces of the connector dig axially into the workpiece, providing additional grip.

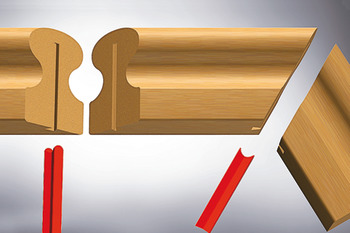

The operating principle is based on a double wedge shape for connecting two workpieces. The well-tried dovetail shape has been further developed with all its advantages in this product, resulting in a positive fitting connector. It can be used efficiently and easily in conjunction with state-of-the-art processing technology.

This product offers an easy-to-use and durable solution for interior fittings. Combined with Hafele's quality, it stands out as an excellent connector.
