Flap hinge - 316.44.501
Flap Fittings & Stays

Flap hinge - 316.44.501

HAFELE

Drawing Files Technical Documents

Flap hinge - 316.44.501 by Hafele — A perfect solution for bar cabinet applications.

Properties

Product Code: 316.44.501
Category: Flap Fittings & Stays

Material Properties

Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • 316.44.501_Safety notes
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

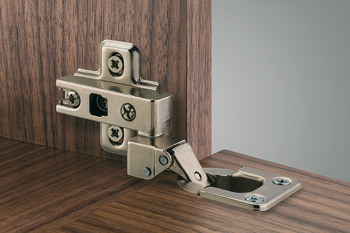

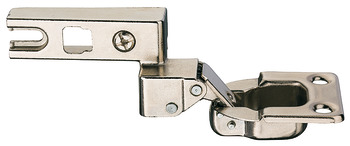

The Flap hinge - 316.44.501 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for bar cabinet applications or smaller panels, making it suitable for media furniture as well. Made from steel and zinc alloy, it ensures durability and longevity.

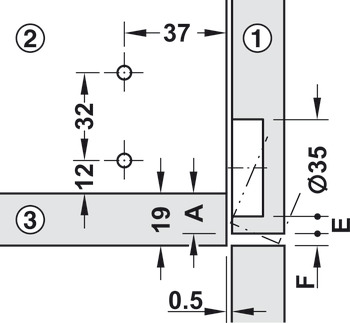

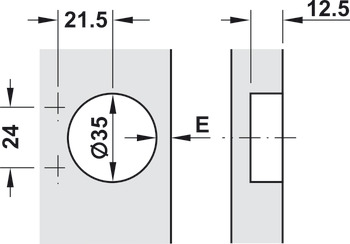

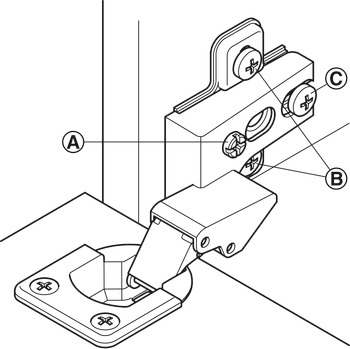

With an opening angle of 95°, this hinge allows for smooth operation of cabinet doors. The cup drilling depth of 12.50 mm makes installation straightforward. Additionally, the hinge features depth adjustment of 4 mm and side adjustment of ±1.5 mm, allowing for precise alignment. Both hinges can be adjusted in the same direction, either to the left or right, and height adjustment of ±2 mm is possible via the mounting plate.



The Flap hinge - 316.44.501 provides a user-friendly experience with its lightweight design. Its high-quality materials and adjustable features make it versatile for various applications. This product by Hafele is an excellent choice for those seeking both aesthetics and functionality.
