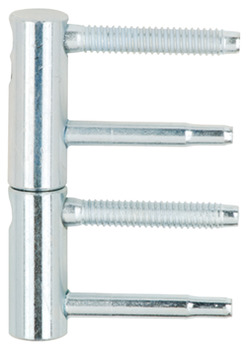

Drill-in hinge, Startec Fl 5, for rebated front doors up to 120 kg - 922.24.490 by Hafele — A hinge that provides excellent durability and functionality.
Properties
Product Code: 922.24.490
Category: Drill In Hinges
Material Properties
Used Material:
Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): 10.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
922.24.490_Safety notes
ISO_27001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

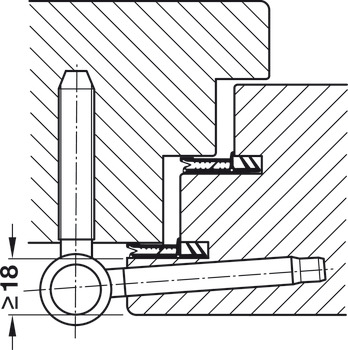

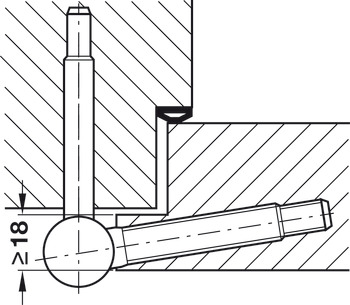

The Drill-in hinge, Startec Fl 5, for rebated front doors up to 120 kg - 922.24.490 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right applications, it accommodates overlay distances of 18 mm or more. Available in white and zinc plated finishes, this hinge is constructed from durable steel.

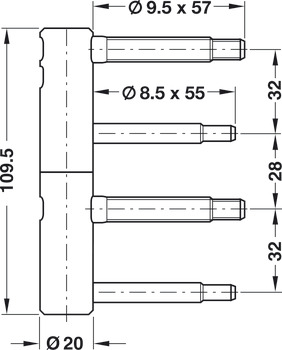

Capable of supporting door weights of up to 120 kg with two hinges, it features a knuckle diameter of 20 mm and a knuckle length of 109.50 mm. The friction bearing design ensures maintenance-free operation, while an optional security pin is available for outward opening doors. It also offers side adjustment of -2/+3 mm, height adjustment of less than 4 mm, and closing pressure adjustment of -2/+3 mm.
The Drill-in hinge, Startec Fl 5 stands out for its durability and functionality, making it a preferred choice among door hinges.
