Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
922.43.670_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

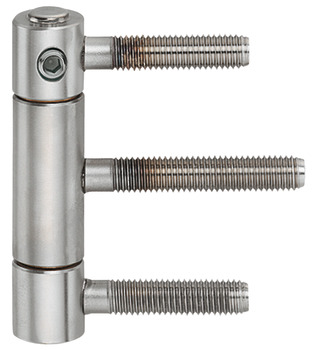

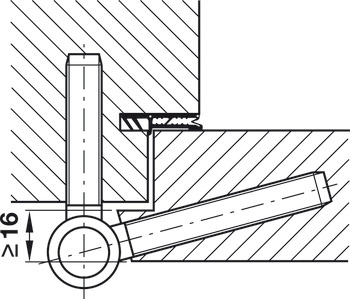

The Drill-in hinge, Anuba Herkula 320 SM-RA, SM-FR - 922.43.670 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right-hand use, it features an overlay distance of ≥16 mm and a robust knuckle diameter of 20 mm. Compatible with the Herkula 315 GL-RA and Herkula 315 GL-FR model series, it is ideal for wooden frames and rebated wooden front doors.

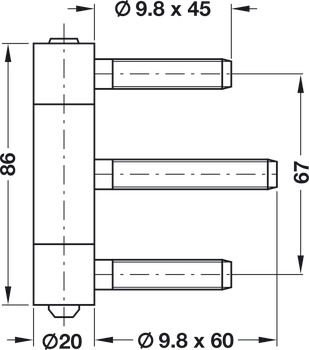

This hinge supports a maximum door weight of 120 kg with 2 hinges and 150 kg with 3 hinges, making it suitable for heavy-duty applications. The knuckle length is 86 mm, and it requires drill holes of 7.7 mm for the first step and 8.7 mm for the second step. The self-lubricating sintered metal bearing ensures longevity and smooth operation.
The Drill-in hinge, Anuba Herkula 320 stands out due to its high-quality materials and functionality, making it a preferred choice for reliable door installations.
