Drill-in hinge, Anuba Duplex 321-3D-TL - 922.62.610

HAFELE

Drill-in hinge, Anuba Duplex 321-3D-TL - 922.62.610 by Hafele — A durable and functional solution for door installations.

Properties

Product Code: 922.62.610
Category: Recessed Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

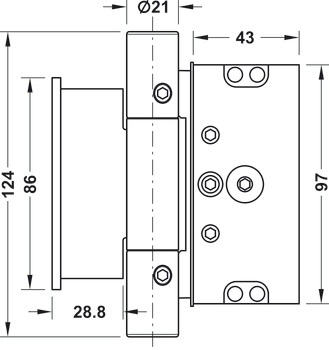

Dimensions

Length (cm): 12.4
Width (cm): 2.9
Height (cm): 8.6
Volume (cm³): 2.1

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.62.610_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

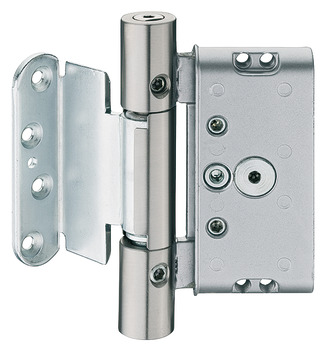

The Drill-in hinge, Anuba Duplex 321-3D-TL - 922.62.610 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and is made of stainless steel, ensuring durability and a sleek finish. It is designed for easy installation and long-lasting performance.

Designed for wooden door leaves, this hinge can support varying door weights, with a maximum of 110 kg for two hinges, 130 kg for three hinges, and 160 kg for four hinges. This versatility allows it to be used in a range of door applications.

The Drill-in hinge, Anuba Duplex provides user-friendly adjustment options, including side adjustment ±2.5 mm, height adjustment -2/+4 mm, and closing pressure adjustment -1/+3 mm. It also comes equipped with a security pin for added safety. Mounting aids and tool sets are available upon request, enhancing the installation experience.
