Flap Fittings & Stays

Double flap lift-up fitting - 372.37.307

HAFELE

Download Product ID Card

Download Product Files

Double flap lift-up fitting - 372.37.307 by Hafele — A perfect solution for two-piece flaps.

Properties

Product Code: 372.37.307
Category: Flap Fittings & Stays

Material Properties

Used Material:
Wood, Aluminium frame
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): 58
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
372.37.307_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Double flap lift-up fitting - 372.37.307 by Hafele represents a refined fusion of quality and functionality. This fitting is designed for two-piece flaps made from wood or with an aluminum frame. Its nickel-plated finish ensures durability and longevity. The adjustment facility allows for height, side, and depth adjustments of the top front panel via concealed hinges, while the bottom front panel can be adjusted using a center hinge. This feature provides users with flexibility and ease during installation.

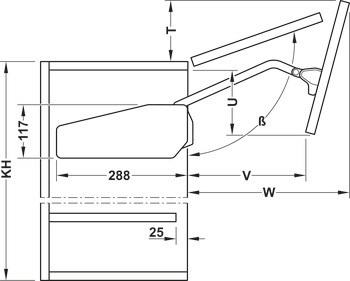

The installation process utilizes a screw-fixing fitting, and the front panel can be mounted without tools using a clip system on pre-mounted front fixing brackets. This makes the installation process fast and practical. The fitting is suitable for cabinet heights ranging from 580 to 650 mm and can accommodate flap weights between 4.3 to 8.8 kg. Additionally, the installation depth is 288 mm. The product comes with a double flap lift-up fitting set, including one piece each for left and right, front fixing brackets for wooden flaps or flaps with wide aluminum frames, installation instructions, and a paper drilling template.

The Double flap lift-up fitting - 372.37.307 stands out with its quality and functionality, making it an excellent choice for various applications.
