Deadbolt rim lock Symo FM Plus - 232.04.730
Deadbolt Rim Locks

Deadbolt rim lock Symo FM Plus - 232.04.730

HAFELE

Drawing Files Technical Documents

Deadbolt rim lock Symo FM Plus - 232.04.730 by Hafele — A perfect locking system designed to enhance your security.

Properties

Product Code: 232.04.730
Category: Deadbolt Rim Locks

Material Properties

Used Material:
Lock case and cylinder: Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.8

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • ISO_27001_ENG
  • 232.04.730_Safety notes
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

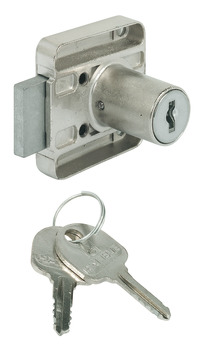

The Deadbolt rim lock Symo FM Plus - 232.04.730 by Hafele represents a refined fusion of quality and functionality. This lock is crafted from high-quality zinc alloy and features a bright nickel plating for an elegant appearance. Equipped with a fixed plate cylinder, this product provides a secure locking solution for your furniture.

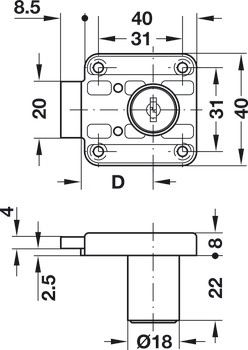

The deadbolt rim lock boasts a backset of 24.50 mm and is characterized by a round cylinder shape. With a cylinder housing length of 22 mm and a cylinder diameter of 18 mm, it ensures easy installation. The deadbolt throw dimension of 8.50 mm enhances security, while the standard profile locking system ensures reliability. The left mounting option simplifies the installation process.



The Deadbolt rim lock is an excellent choice, especially for mass furniture production. It combines security, durability, and aesthetic design to meet user expectations. This product is designed to enhance your security with an effective locking system.
