Deadbolt rim lock Symo FM Plus - 232.04.700
Deadbolt Rim Locks

Deadbolt rim lock Symo FM Plus - 232.04.700

HAFELE

Drawing Files Technical Documents

Deadbolt rim lock Symo FM Plus - 232.04.700 by Hafele — A robust locking system designed to enhance security.

Properties

Product Code: 232.04.700
Category: Deadbolt Rim Locks

Material Properties

Used Material:
Lock case and cylinder: Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.8

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • ISO_9001_TR
  • ISO_27001_TR
  • ISO_9001_ENG
  • 232.04.700_Safety notes
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

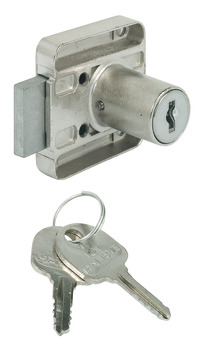

The Deadbolt rim lock Symo FM Plus - 232.04.700 by Hafele represents a refined fusion of quality and functionality. This lock is constructed from high-quality zinc alloy and features a bright nickel plating that adds an aesthetic touch. Designed with a fixed plate cylinder, it is particularly suitable for mass production applications in furniture.

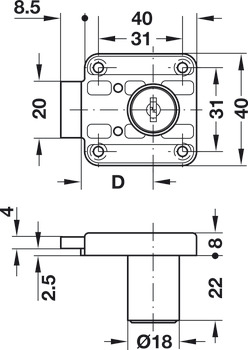

This deadbolt lock has a backset of 24.50 mm and comes with a round cylinder that measures 22 mm in length. The cylinder diameter is 18 mm, and it provides a deadbolt throw dimension of 8.50 mm, ensuring a secure closure. Equipped with a standard profile locking system, this model is designed for right-hand mounting and is user-friendly.



The Deadbolt rim lock Symo FM Plus - 232.04.700 stands out for its unique strengths, providing security and durability that make it an ideal choice for various applications.
