Dead bolt espagnolette lock, PZ 60, backset 40 mm - 225.90.710
Deadbolt Locks

Dead bolt espagnolette lock, PZ 60, backset 40 mm - 225.90.710

HAFELE

Drawing Files Technical Documents

Dead bolt espagnolette lock, PZ 60, backset 40 mm - 225.90.710 by Hafele — A reliable locking system designed to secure your doors effectively.

Properties

Product Code: 225.90.710
Category: Deadbolt Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • ISO_27001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
  • 225.90.710_Safety notes
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

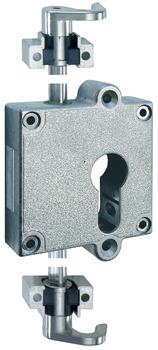

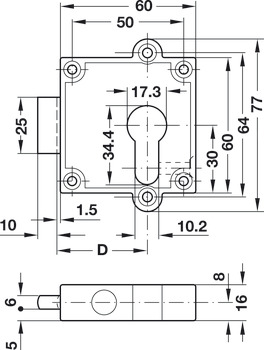

The Dead bolt espagnolette lock, PZ 60, backset 40 mm - 225.90.710 by Hafele represents a refined fusion of quality and functionality. This lock features a profile cylinder aperture designed to accommodate profile cylinders in compliance with DIN 18252 standards. Made from zinc alloy, this product is nickel plated for enhanced durability.

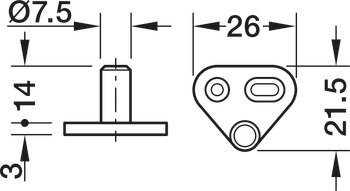

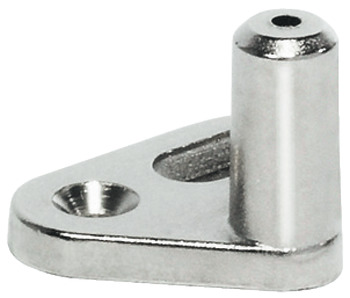

With a backset of 40 mm, it offers flexibility as it can be installed on both left and right sides. The lock is suitable for use with divided profile rods of Ø 8 mm. Its deadbolt throw dimension of 10 mm ensures a secure closure. To change the closing direction, simply push in the lower pivot bearing and turn it by 90° while the lock is engaged.



This locking system by Hafele combines security and durability, making it an ideal solution for various door applications. Its long-lasting design and ease of installation make it a preferred choice.
