Current Transmitter, Model 10305, EffEff - 912.02.091
Accessories

Current Transmitter, Model 10305, EffEff - 912.02.091

HAFELE

Drawing Files Technical Documents

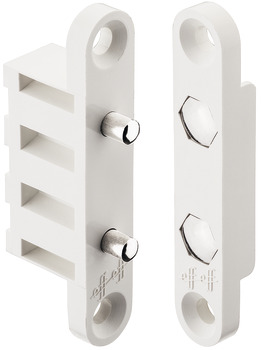

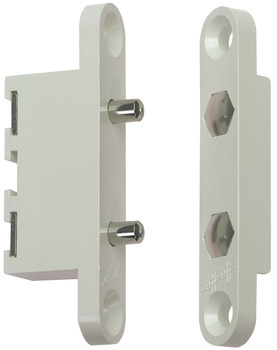

Current Transmitter, Model 10305, EffEff - 912.02.091 by Hafele — A perfect solution for current transfer from door frame to door.

Properties

Product Code: 912.02.091
Category: Accessories

Material Properties

Used Material:
Housing: Plastic Contact pins: Brass
Durability:
No Information

Product Attribute Symbols

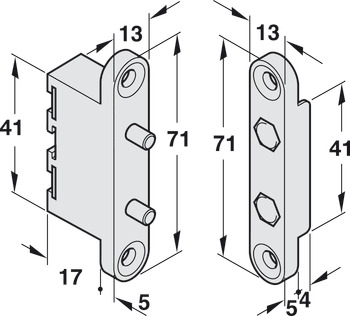

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
  • 912.02.091_Safety notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Current Transmitter, Model 10305, EffEff - 912.02.091 by Hafele represents a refined fusion of quality and functionality. This transmitter is designed for current transfer from the door frame to the door. With a plastic housing, this product is both sturdy and lightweight. The brass contact pins ensure a reliable connection, while the nickel plating enhances durability.

The maximum switching voltage of the transmitter is 24 V, and the maximum switching current is 1.5 A. This product can be used in conjunction with electric strike connections, providing quick response times for secure operation. The on-period is 10 seconds, and the pause-period is 40 seconds, enhancing efficiency. Additionally, the maximum distance between contact blocks is 5 mm, facilitating easy installation.



The Current Transmitter, Model 10305, EffEff - 912.02.091 stands out for its reliability and durability. Hafele's product offers an excellent solution for current transfer in door systems.
