Furniture Hinges

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.530

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.530 by Hafele — A practical solution that simplifies assembly tasks.

Properties

Product Code: 329.71.530
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
329.71.530_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

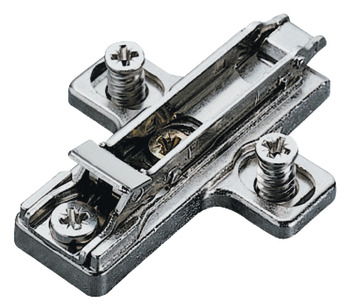

The Cruciform mounting plate, With pre-mounted Euro screws - 329.71.530 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of lightweight yet durable zinc alloy and features a nickel plating for extra protection. Its design allows for quick and easy assembly while providing an aesthetic finish.

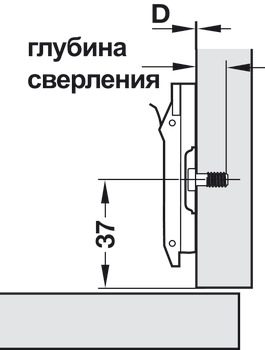

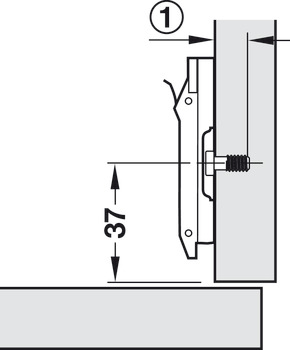

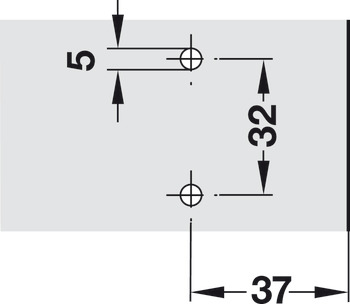

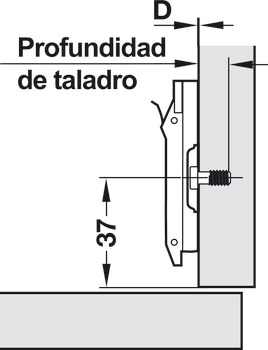

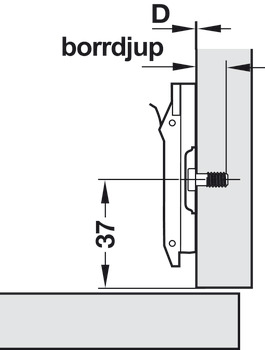

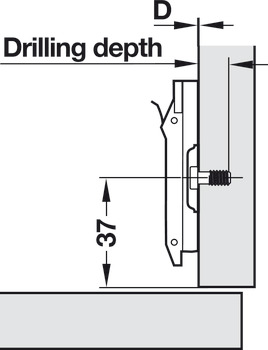

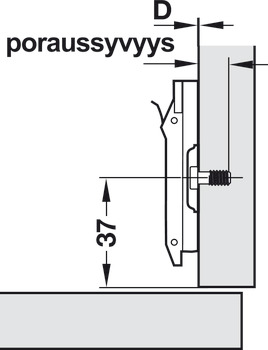

The product accommodates standard mounting requirements with a drill hole diameter of 5 mm. Suitable for a center panel thickness of 16 mm, it offers a screw distance of 32 mm and an edge distance of 37 mm. The eccentric system allows for height adjustments of ±2 mm and depth adjustments of -0.5/+2.8 mm, providing flexibility during installation.

This mounting plate is an excellent choice for both professional and amateur users, simplifying assembly tasks and saving time. With its quality and functionality, this product stands out in the market.
