Cruciform mounting plate Metalla 510 SM - 329.71.523

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.71.523 by Hafele — An ideal mounting solution for Metalla 510 concealed hinges.

Properties

Product Code: 329.71.523
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_ENG
329.71.523_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

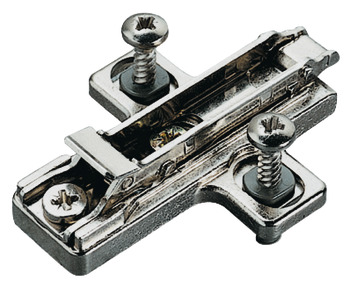

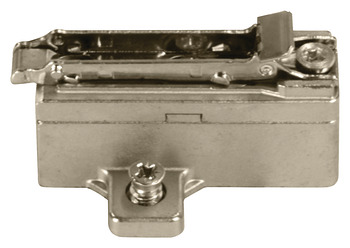

The Cruciform mounting plate Metalla 510 SM - 329.71.523 by Hafele represents a refined fusion of quality and functionality. This mounting plate is crafted from zinc alloy and features a nickel plating that enhances its durability. Specifically designed for Metalla 510 concealed hinges, this product simplifies installation processes, providing a user-friendly experience.

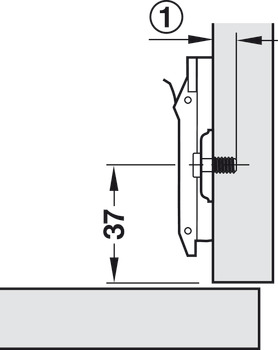

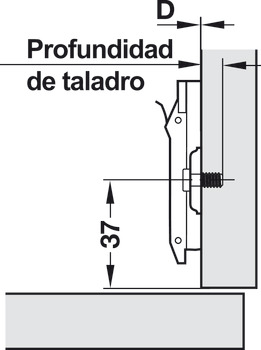

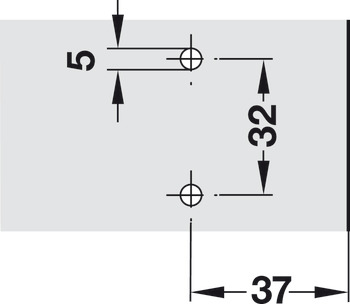

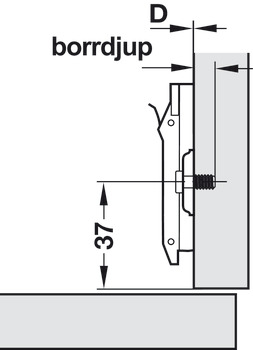

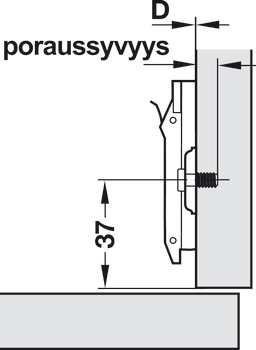

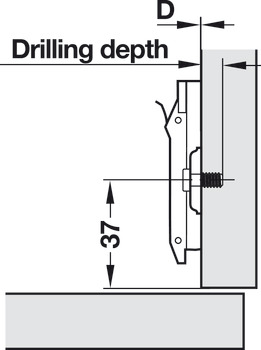

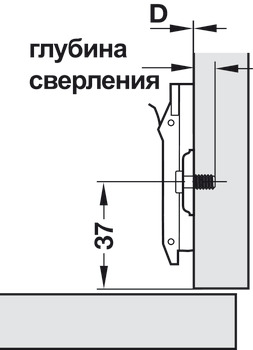

The mounting plate accommodates a drill hole diameter of 5 mm and a side panel thickness of 19 mm, ensuring compatibility with various furniture types. With a drilling depth of 11 mm, it allows for precise adjustments during installation. Additionally, the screw distance of 32 mm and edge distance of 37 mm provide flexibility during mounting. The height adjustment can be made via an eccentric mechanism, allowing for ±2 mm adjustments, while depth adjustments range from -0.5 to +2.8 mm.

The Cruciform mounting plate stands out with its ease of installation and reliability, making it one of the best solutions for your furniture projects.
