Furniture Hinges

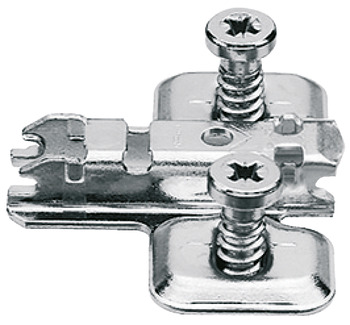

Cruciform mounting plate, For Blum Clip/Clip Top/Cristallo - 342.20.630

HAFELE

Cruciform mounting plate, For Blum Clip/Clip Top/Cristallo - 342.20.630 by Hafele — A practical solution that simplifies installation processes.

Properties

Product Code: 342.20.630
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
342.20.630_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate, For Blum Clip/Clip Top/Cristallo - 342.20.630 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to work seamlessly with Blum Clip Top Blumotion concealed hinges and Clip Top, Clip systems. Made from durable steel, it features a nickel plating that enhances its aesthetic appeal.

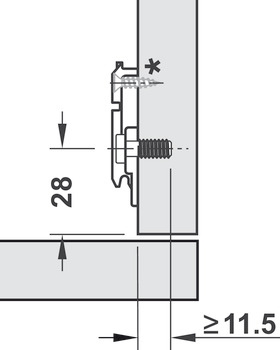

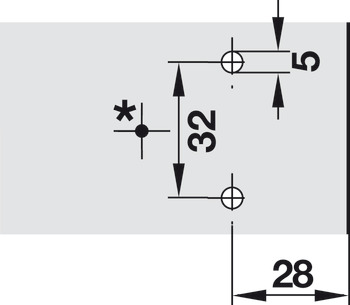

With a drill hole diameter of 5 mm, it allows for easy installation. The drilling depth of 11.50 mm ensures a secure fit. The screw distance of 32 mm and edge distance of 28 mm provide flexibility in mounting options. Additionally, the height adjustment facility of ±3 mm allows for precise adjustments during installation.

The cruciform mounting plate stands out for its ease of installation and reliability. Combined with Hafele's quality, this product helps users complete their assembly processes smoothly.
