Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.20.880

HAFELE

Download Product ID Card

Download Product Files

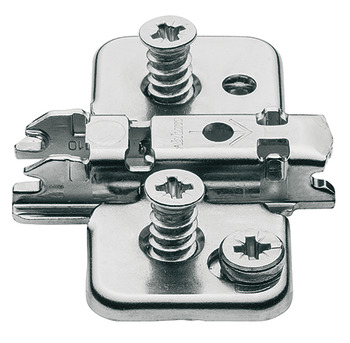

Cruciform mounting plate, Clip Top Blumotion - 342.20.880 by Hafele — An ideal solution for corner applications.

Properties

Product Code: 342.20.880
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_TR
342.20.880_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

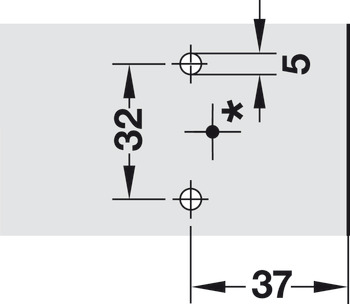

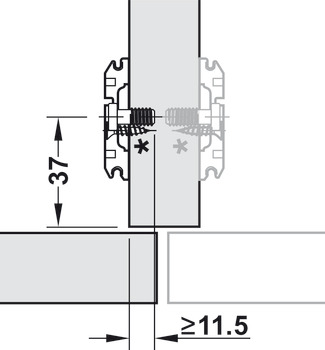

The Cruciform mounting plate, Clip Top Blumotion - 342.20.880 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for corner applications and works seamlessly with angled wedges. Made from durable steel, it features a nickel-plated finish that ensures longevity and aesthetic appeal. The required drill hole diameter is 5 mm, and the drilling depth is 11.50 mm, making installation straightforward and efficient.

The Cruciform mounting plate also offers height adjustment via an eccentric system, allowing for a ±2 mm adjustment range. This feature enables precise adjustments during installation. Additionally, the mounting plate is designed for screw fixing with pre-mounted Euro screws, further streamlining the installation process.

The Cruciform mounting plate enhances the practicality and reliability of your installation processes, making it an essential choice for any corner application. Its quality from Hafele ensures it stands out in the market.
