Concealed hinge, Clip top 120°, Aventos HF hinge for aluminium frames - 342.93.400

HAFELE

Concealed hinge, Clip top 120°, Aventos HF hinge for aluminium frames - 342.93.400 by Hafele — a perfect solution designed specifically for aluminium frames.

Properties

Product Code: 342.93.400
Category: Flap Fittings & Stays

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_TR
342.93.400_Safety notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

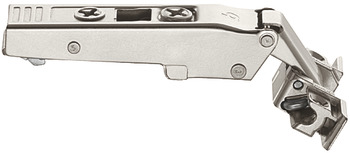

The Concealed hinge, Clip top 120°, Aventos HF hinge for aluminium frames - 342.93.400 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for aluminium frames and is compatible with Blum Aventos HF top and HF top Servo-Drive systems. The product is made from zinc alloy and features an impressive opening angle of 120°. It stands out for its ease of use and practical installation.

This hinge is designed without an automatic closing spring, allowing for a straightforward operation. It requires a cup drilling depth of 12.60 mm and a cup drilling diameter of 35 mm. The hinge can be fixed with screws, and it offers side adjustment of ±2 mm and depth adjustment of -2/+3 mm, which can be achieved through spiral technology. Installation is tool-free, thanks to the clip system.

The Hafele Concealed hinge, Clip top 120°, Aventos HF hinge for aluminium frames - 342.93.400 offers an exceptional experience with its superior design and functionality, making it a preferred choice for aluminium frame doors.
