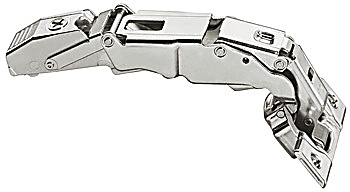

Concealed hinge, Blum Clip Top Blumotion 155º, full overlay mounting - 342.44.403 by Hafele — This product is designed for internal pull-outs or extending trays, providing full overlay mounting functionality. Made from durable steel and zinc alloy, it ensures long-lasting use.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

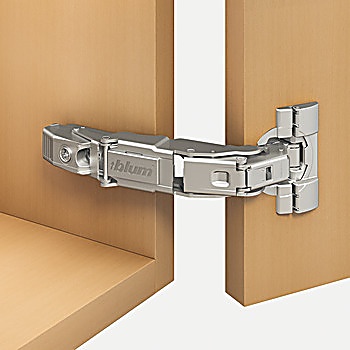

The Concealed hinge, Blum Clip Top Blumotion 155º, full overlay mounting - 342.44.403 by Hafele represents a refined fusion of quality and functionality. This hinge features a full overlay design, making it ideal for cabinets with internal pull-outs or extending trays. Made from steel and zinc alloy, it offers a 155° opening angle, providing ample access for users.

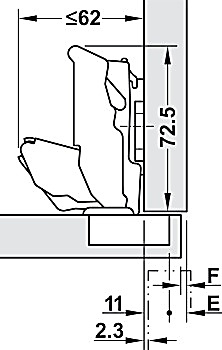

The hinge is equipped with a clip system for easy installation, allowing doors to be mounted without tools. Additionally, it offers flexible adjustment options, including side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, ensuring a perfect fit during installation. The cup drilling depth is 11.70 mm, and it requires a cup drilling diameter of 35 mm.
This hinge by Hafele stands out for its high quality and durability, making it a preferred choice among furniture hinges. Its unique features ensure it meets the needs of users effectively.
