Furniture Hinges

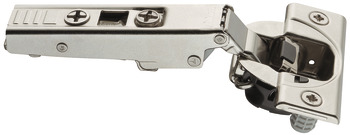

Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.650

HAFELE

Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.650 by Hafele — Designed for seamless cabinet closure and modern aesthetics.

Properties

Product Code: 342.42.650
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
342.42.650_Safety notes
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

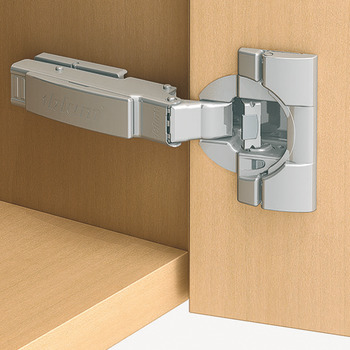

The Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.650 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing spring and a soft closing mechanism that can be deactivated, making it ideal for modern cabinetry. The full overlay mounting design provides a sleek finish, allowing cabinet doors to close seamlessly against the frame.

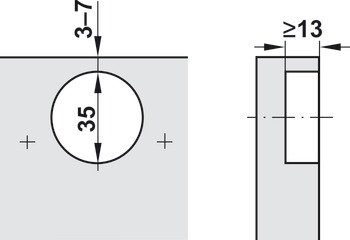

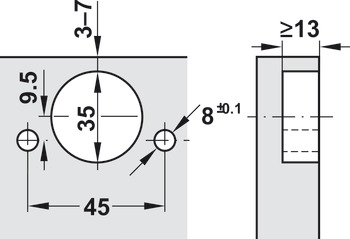

Constructed from durable steel, this hinge is designed for wooden doors and offers a 110° opening angle for easy access. The installation process is straightforward, utilizing cup drilling with a depth of 13 mm and a diameter of 35 mm. The drilling pattern of 45/9.5 ensures compatibility with various cabinet styles, while the adjustment features allow for side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, making it versatile for different installations.

The Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.650 stands out for its modern design and functionality. It enhances the overall look of your furniture while ensuring ease of use and durability.
