Specification:
• consists of: overhead shower, ceiling connector

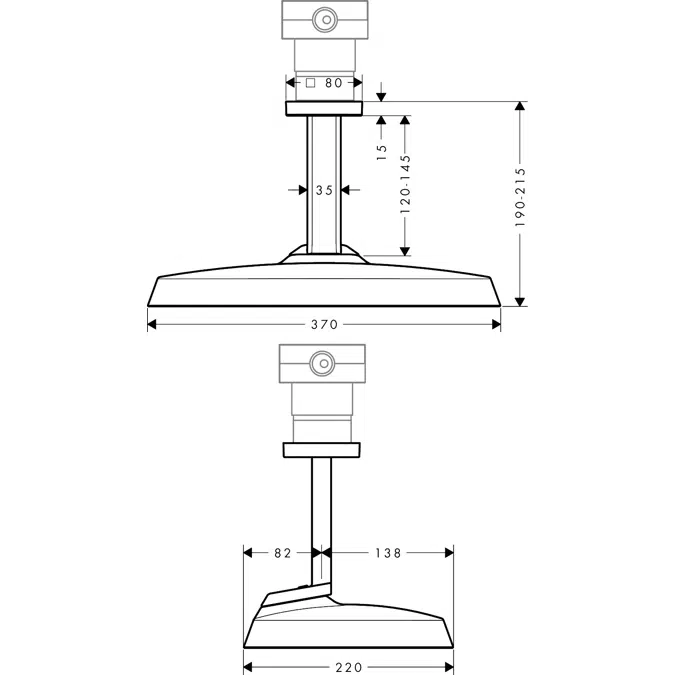

• shower head size: 370 x 220 mm
• spray type: PowderRain, Rain
• FlexPower: nozzles automatically adjust to water pressure by opening and closing
• QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
• flow regulator: 12 l/min (with possible tolerances ± 10 %)
• flow rate PowderRain spray at 3 bar: 10,4 l/min
• flow rate Rain spray at 3 bar: 10,1 l/min
• function from: 5,5 l/min
• maximum flow rate at 3 bar: 10,4 l/min
• minimum flow pressure: 1 bar
• material spray disc: metal
• overhead shower removable for cleaning
• optional for 2jet overhead showers with ceiling connector: change escutcheon size to 120/120 dimension via AXOR Signature request
• metal ceilling connector
• ceiling connection length: 145 mm
• installation: ceiling mounting
• mounting type: concealed
• connection type: basic set
• suitable for continous flow water heaters
