Flap Fittings & Stays

Stay Flap Fitting, Blum Aventos HK-Top stay flap fitting - 372.85.546

HAFELE

Stay Flap Fitting, Blum Aventos HK-Top stay flap fitting - 372.85.546 by Hafele — A perfect fitting solution for one-piece flaps.

Properties

Product Code: 372.85.546
Category: Flap Fittings & Stays

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 0.1
Height (cm): 20.5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
372.85.546_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

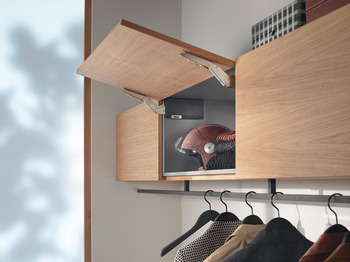

The Stay Flap Fitting, Blum Aventos HK-Top stay flap fitting - 372.85.546 by Hafele represents a refined fusion of quality and functionality. This fitting set is designed for one-piece flaps, suitable for wood or aluminum frame applications. Thanks to the user-friendly clip system, front panel installation can be done without any tools. The opening and closing force can be continuously adjusted at the lift mechanism, and the multi-position stop feature ensures that the flap locks securely in any position.

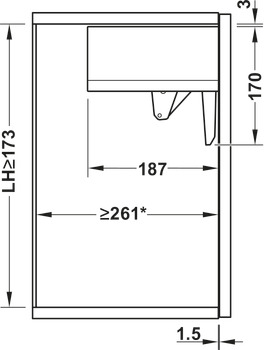

Made from durable steel and finished with zinc plating, the Stay Flap Fitting ensures long-lasting performance. The maximum opening angle is 107 degrees, accommodating cabinet widths of up to 1800 mm. It is designed for flap heights ranging from 205 to 600 mm and can support flap weights of up to 18 kg with two lift mechanisms. The installation depth is 187 mm, and the fitting allows for 3-dimensional adjustment of opening and closing forces.

The Stay Flap Fitting offers practical use and durable construction, meeting the needs of users. This product ensures the secure opening and closing of cabinet flaps while providing an aesthetic appearance.
