Sliding door fittingSlido Vertico 20 VF W, set for 1 door - 403.10.008

HAFELE

Sliding door fittingSlido Vertico 20 VF W, set for 1 door - 403.10.008 by Hafele — an ideal sliding door solution for wooden doors.

Properties

Product Code: 403.10.008
Category: Wooden sliding door

Material Properties

Used Material:
Rollers: Plastic
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): 100
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
403.10.008_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

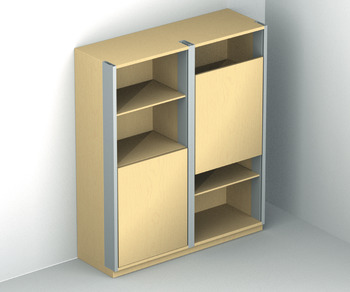

The Sliding door fittingSlido Vertico 20 VF W, set for 1 door - 403.10.008 by Hafele represents a refined fusion of quality and functionality. This set is designed for wooden doors with a thickness of 16 mm and a weight of up to 20 kg. Equipped with 4 rollers, it provides excellent performance in sliding door systems.

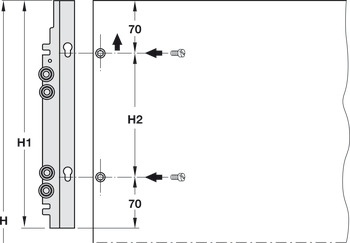

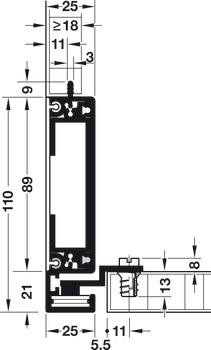

The door height can be adjusted between 1000 mm and 1200 mm, and the minimum side panel thickness is 18 mm. The rollers are made of plastic and the sliding mechanism is guided by ball bearings. The top and bottom stoppers are designed for sliding into a single running track. Door adjustment is done via a slot.

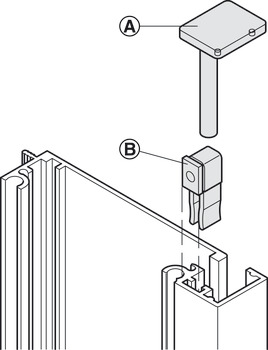

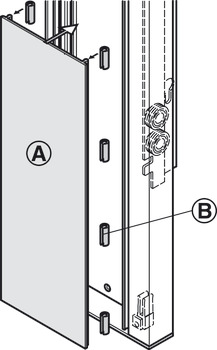

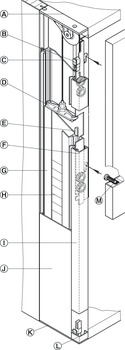

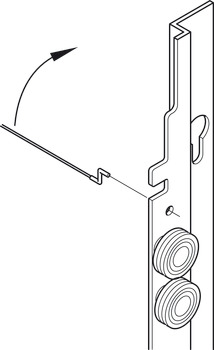

This product features a counterweight accommodated in a container in the running track that must correspond to the door weight. If necessary, two units can be ordered and mounted on both sides. The set is supplied without tracks, and it is necessary to order running tracks, cover profiles, counterweight boxes, counterweights, and sliding profiles separately. The set includes 2 running gears, 2 cover caps with deflection roller at the top, 2 cover caps at the bottom, 4 door stoppers (2 each top/bottom), 2 cables, 4 screw-in sleeves, 4 cover caps for the counterweight box (2 each top/bottom), and 1 mounting jig.

Hafele's Sliding door fittingSlido Vertico 20 VF W, set for 1 door stands out by combining aesthetic appeal and functionality, making it an ideal choice for enhancing spaces.
