Sliding & Folding Door Fittings for Architectural Appliances

Sliding Door FittingSlido D-Line11 80P telescopic opening - 941.03.022

HAFELE

Sliding Door FittingSlido D-Line11 80P telescopic opening - 941.03.022 by Hafele — This fitting allows for space-saving telescopic opening for wooden doors.

Properties

Product Code: 941.03.022
Category: Sliding & Folding Door Fittings for Architectural Appliances

Material Properties

Used Material:
Wood
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 125
Width (cm): 60
Height (cm): 47
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

941.03.022_Safety notes
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

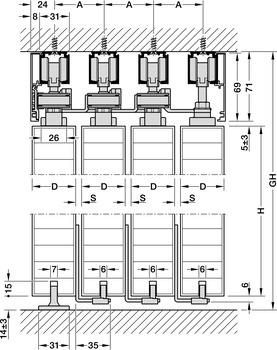

The Sliding Door FittingSlido D-Line11 80P telescopic opening - 941.03.022 by Hafele represents a refined fusion of quality and functionality. This product is designed to accommodate between 2 to 4 door leaves, making it versatile for various applications. It is suitable for wooden doors with widths ranging from 600 mm to 1250 mm, and compatible with door thicknesses of 26 mm to 47 mm.

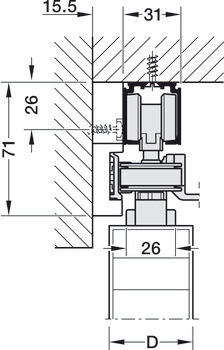

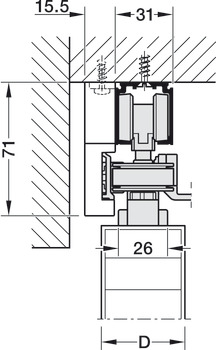

With a height adjustment facility of ±3 mm, this system allows users flexibility during installation. The fitting is designed for ceiling mounting and is secured with a screwed-on support flange. It facilitates the telescopic opening and closing of 2, 3, or 4-door systems, with a weight capacity of up to 80/70/60 kg depending on the number of door leaves.

This product comes with various components that facilitate easy installation. It includes 8 running gears, 8 mounting plates, 5 short mounting plates, 3 long mounting plates, 6 deflection rollers, 1 floor guide, and 3 floor guides. Additionally, it features a mounting block for the toothed belt and 3 toothed belts measuring 2700 mm in length.

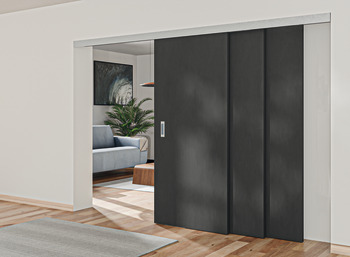

Use cases include residential spaces, office partitions, retail arrangements, and more. The sliding door fitting not only saves space but also provides an aesthetic appeal. Hafele's product is designed to meet user needs effectively. Combining quality and functionality, this fitting is an excellent choice for any wooden door.
