Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer - 950.05.284

HAFELE

Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer - 950.05.284 by Hafele — Protects your doors from sound and air leakage.

Properties

Product Code: 950.05.284
Category: Seals

Material Properties

Used Material:
Carrier: Aluminium Sealing profile: Silicone, self-extinguishing
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 0.1
Width (cm): No Information
Height (cm): 1.1
Volume (cm³): 0.11

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
950.05.284_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

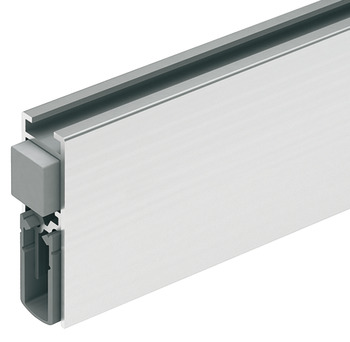

The Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer - 950.05.284 by Hafele represents a refined fusion of quality and functionality. This door seal is designed with an aluminum carrier and a self-extinguishing silicone sealing profile. The gray sealing profile offers an aesthetic appearance while the aluminum carrier ensures durability.

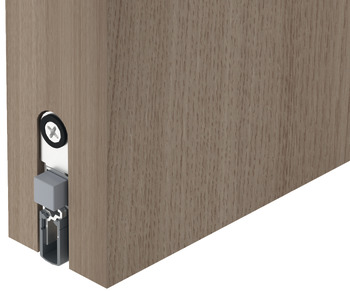

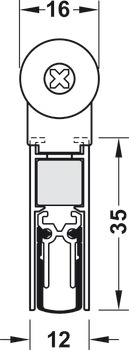

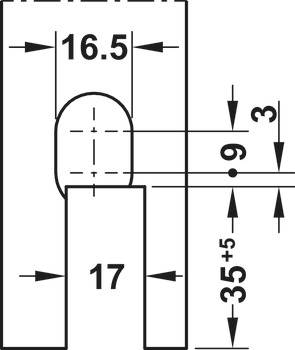

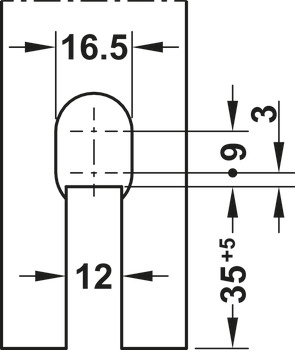

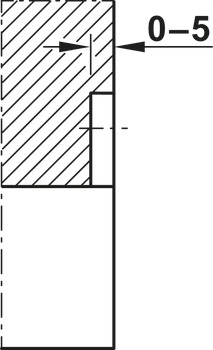

The maximum sealing height of the door seal is 11 mm, suitable for installation in a groove of 12 x 35 mm. Designed for both DIN left and DIN right-hand use, this product is ideal for sliding doors. It allows for full mortise fitting with mounting brackets and offers trimming of up to 125 mm on one side. As for order reference, individual lengths up to 1958 mm and other sliding door seals for different door thicknesses are available upon request.

This product effectively prevents sound and air leakage, making your living spaces comfortable. Protect your doors with Hafele and enhance your energy efficiency.
