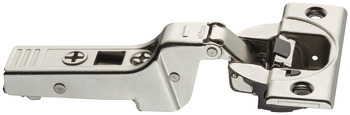

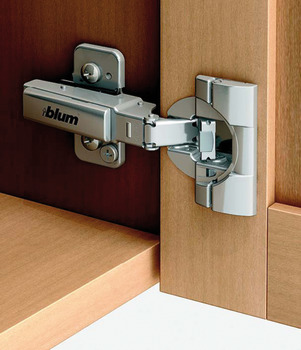

Profile Door Hinge, Blum Clip Top Blumotion 95°, half overlay mounting - 342.46.601 by Hafele — Ensures a smooth closing mechanism and elegant design for your doors.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
342.46.601_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

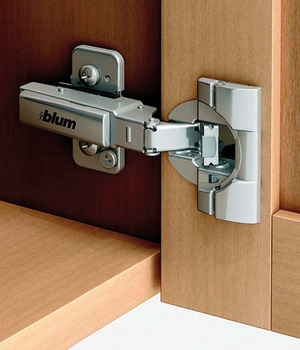

The Profile Door Hinge, Blum Clip Top Blumotion 95°, half overlay mounting - 342.46.601 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for thick and profile doors, compatible with doors up to 32 mm thick. The automatic closing spring ensures that doors close on their own, while the soft-closing mechanism prevents slamming, providing a gentle closure. The product features a half overlay mounting design to prevent misalignment.

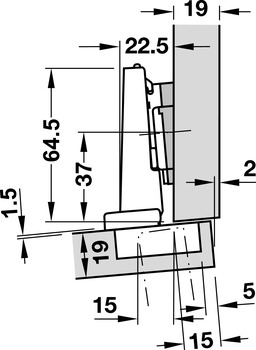

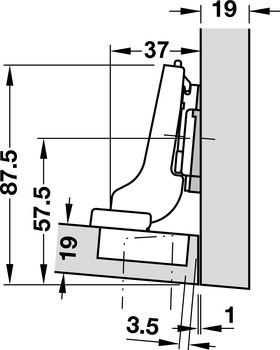

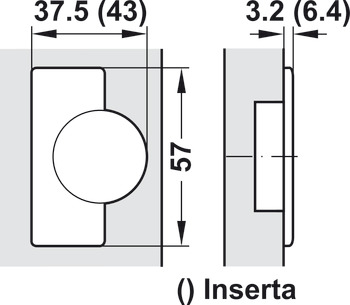

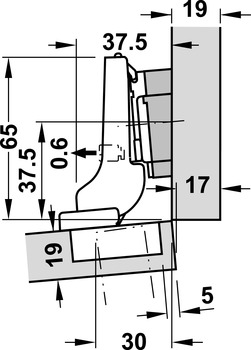

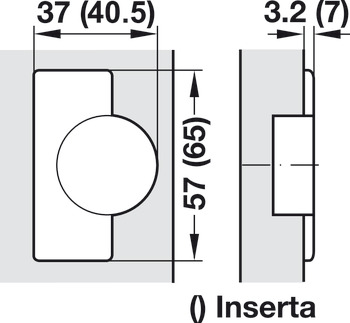

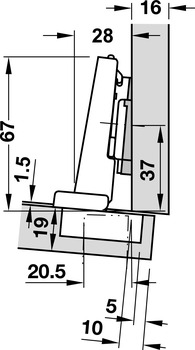

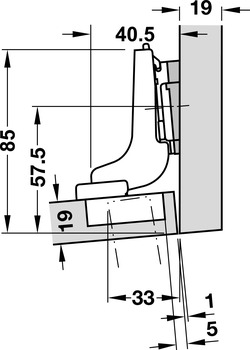

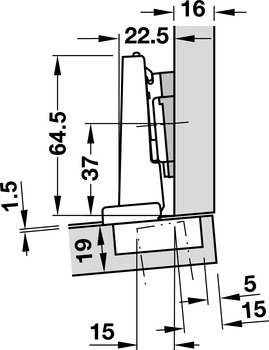

Constructed from steel, this door hinge offers a 95° opening angle. It requires a cup drilling depth of 13 mm and a cup drilling diameter of 35 mm. The drilling pattern is set at 45/9.5 mm, allowing for precise installation. The hinge provides various adjustment options: side adjustment ±2 mm, height adjustment ±3 mm, and depth adjustment -2/+3 mm. The installation process is tool-free, allowing for easy attachment of the door to the cabinet using a clip system.
This hinge not only enhances the aesthetic appeal of your doors but also ensures secure and reliable usage. The Blum Clip Top Blumotion 95° is a must-have for any quality-conscious consumer.
