Drill In Hinges

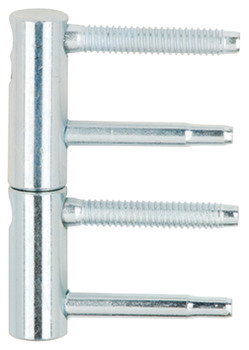

Drill-in hinge, Startec Fl 5, for rebated front doors up to 120 kg - 922.24.590

HAFELE

Drill-in hinge, Startec Fl 5, for rebated front doors up to 120 kg - 922.24.590 by Hafele — A reliable and durable solution for door installations.

Properties

Product Code: 922.24.590
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
Durable

Product Attribute Symbols

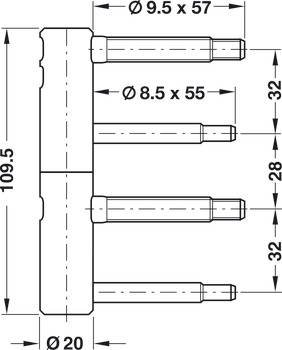

Dimensions

Length (cm): 10.9
Width (cm): 2
Height (cm): 20
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
922.24.590_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

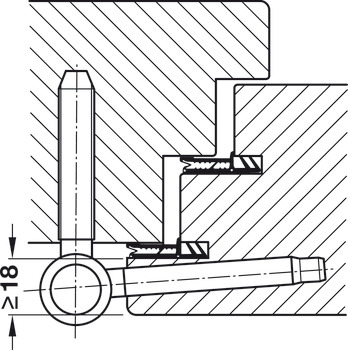

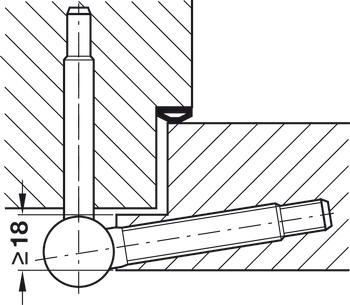

The Drill-in hinge, Startec Fl 5, for rebated front doors up to 120 kg - 922.24.590 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right applications and can support doors weighing up to 120 kg. With a sleek white and zinc-plated finish, it offers both aesthetic appeal and durability. Constructed from high-quality steel, it ensures long-lasting performance.

Featuring a maintenance-free friction bearing, it eliminates the need for regular upkeep. Additionally, it comes with an optional security pin for outward-opening doors. The hinge provides various adjustment options, including side adjustment of -2/+3 mm, height adjustment of less than 4 mm, and closing pressure adjustment of -2/+3 mm. It is certified in compliance with EN 1935:2002 standards.

The Drill-in hinge, Startec Fl 5 stands out with its quality materials and functional design, making it an excellent choice for reliable door installations.
