Door terminal set, DT 100, for doors with standard requirements - 917.60.513
Terminals

Door terminal set, DT 100, for doors with standard requirements - 917.60.513

HAFELE

Drawing Files Technical Documents

Door terminal set, DT 100, for doors with standard requirements - 917.60.513 by Hafele — A secure and practical access control solution.

Properties

Product Code: 917.60.513
Category: Terminals

Material Properties

Used Material:
Backplates (covers): ABS plastic, lever handle aperture parts: Stainless steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 917.60.513_Safety notes
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

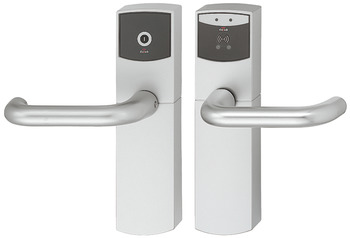

The Door terminal set, DT 100, for doors with standard requirements - 917.60.513 by Hafele represents a refined fusion of quality and functionality. This product is designed for interior doors and is compatible with doors that meet standard requirements. With a distance of 80 mm and a door thickness ranging from 33 to 98 mm, it is ideal for various applications. The transponder technology includes Tag-it™-ISO®, MIFARE Classic®, and MIFARE DESFire® EV2.

This terminal set operates on battery power and functions as an intelligent door terminal with contactless activation using the Dialock key. It features red/green LED lights that indicate the locking and unlocking status, providing visual feedback for users. The standard setting allows unlocking with the Dialock key and automatic locking after 3 seconds. Additionally, the door can be opened from the inside without a key at any time.



The door terminal set is an excellent choice for those seeking a secure and practical solution. Hafele's product is designed to meet the needs of modern living, making it an ideal fit for various applications.
