Furniture Hinges

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.536

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.536 by Hafele — A practical solution for easy assembly.

Properties

Product Code: 329.71.536
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
329.71.536_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

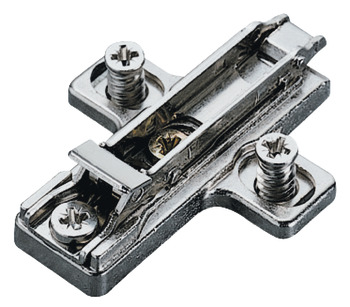

The Cruciform mounting plate, With pre-mounted Euro screws - 329.71.536 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of zinc alloy and features a nickel plating that enhances its durability. Its design allows for quick and efficient assembly processes.

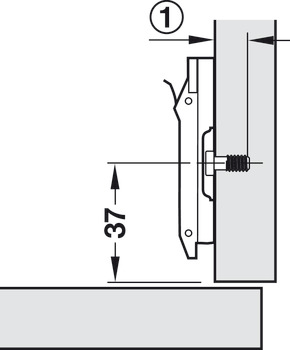

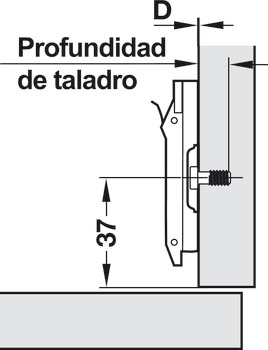

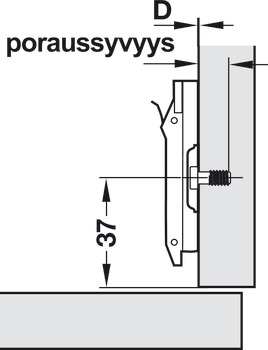

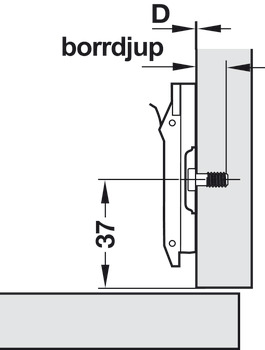

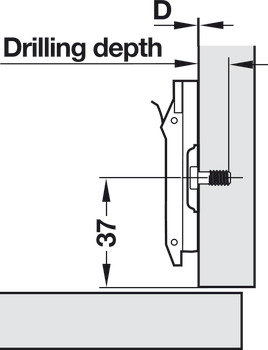

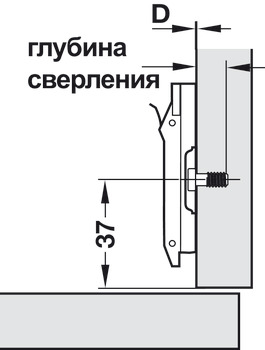

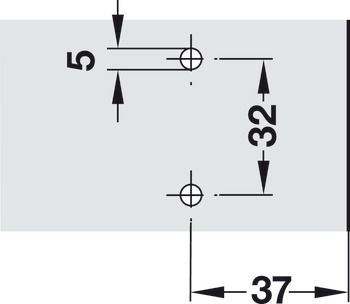

With a drill hole diameter of 5 mm, it is suitable for center panel thicknesses of 16 mm. The screw distance of 32 mm and edge distance of 37 mm provide flexibility for various applications. The adjustment facility allows for height adjustment of ±2 mm and depth adjustment of -0.5/+2.8 mm, making it highly adaptable. The quick fixing system SM further simplifies the mounting process.

This mounting plate simplifies the assembly process and provides a reliable solution. It is an ideal choice for those seeking practicality and quality in their mounting solutions.
