Cruciform mounting plate Metalla 510 SM - 329.87.051

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.87.051 by Hafele — A perfect mounting solution for glass door hinges and corner applications.

Properties

Product Code: 329.87.051
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.87.051_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

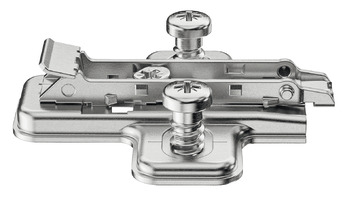

The Cruciform mounting plate Metalla 510 SM - 329.87.051 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for 155° angles, glass door hinges, and 30°-45° corner applications. Made from durable steel and finished with nickel plating, it ensures long-lasting use.

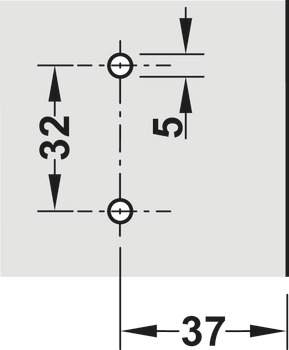

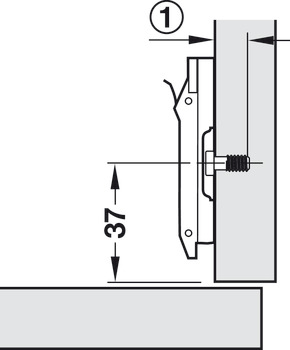

The plate features a drilling depth of 14 mm and a screw distance of 32 mm, allowing for easy installation. Additionally, with an edge distance of 37 mm, it accommodates various mounting options. Height adjustment is facilitated through a slot, while depth adjustment is achieved via an eccentric mechanism. The product is designed for screw fixing with pre-mounted Euro screws.

The Cruciform mounting plate stands out with its ease of installation and robust design. It is a reliable choice for any mounting needs, showcasing Hafele's commitment to quality.
