Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
ISO_9001_ENG
342.42.603_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

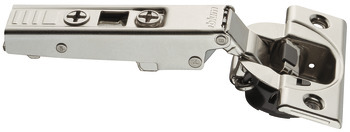

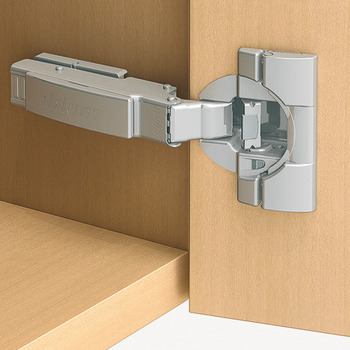

The Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.603 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for standard applications, featuring an automatic closing spring and a soft closing mechanism that can be deactivated as needed. The full overlay mounting enhances the aesthetic appeal of your doors while ensuring durability with its steel material.

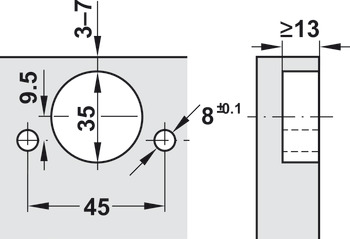

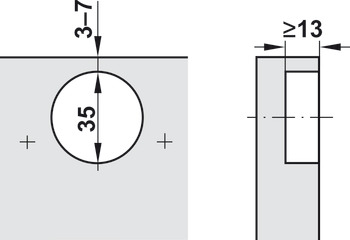

With an opening angle of 110°, it provides a wide access range. It requires a cup drilling depth of 13 mm and a diameter of 35 mm, making installation straightforward with a drilling pattern of 45/9.5. The adjustment facilities include side adjustment of ±2 mm, height adjustment of ±3 mm, and depth adjustment of -2/+3 mm, allowing for precise fitting. The installation process is tool-free, utilizing a clip system for quick setup.
The Concealed hinge, Blum Clip Top Blumotion 110°, full overlay mounting - 342.42.603 ensures your doors close quietly and securely while offering an elegant appearance. A perfect choice for long-lasting performance with Hafele quality.
