Bessey Revo Body Clamp - 003.72.205

HAFELE

Download Product ID Card

Download Product Files

Bessey Revo Body Clamp - 003.72.205 by Hafele — Offers powerful clamping force for precise workpiece handling.

Properties

Product Code: 003.72.205
Category: Clamps & Grips

Material Properties

Used Material:
Housing: Polyamide, metal-reinforced Handle: Two-component plastic Rail: Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 9.5
Width (cm): 25.5
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
003.72.205_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

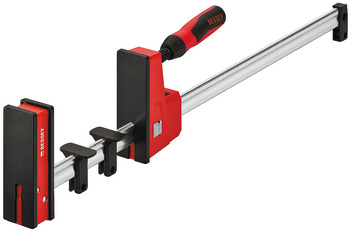

The Bessey Revo Body Clamp - 003.72.205 by Hafele represents a refined fusion of quality and functionality. This clamp features an overhang length of 95 mm and belongs to the REVO model series. It is designed for generally precise clamping or spreading with strong force, allowing users to clamp workpieces exactly in parallel while also clamping behind and alongside the rail as well as on pointed and round surfaces.

The clamp can be reconnected without tools for clamping or spreading, and the maximum clamping force is applied using a hex key in the rotary handle. Additionally, the counter holder at the bottom can be moved, enhancing versatility. It boasts very large parallel clamping surfaces with three removable glue-repellent, paint-resistant, and solvent-resistant protective caps on the clamping surfaces, along with three spacers fitted to the rail to avoid contact between the rail and workpiece.

The Bessey Revo Body Clamp - 003.72.205 stands out with its unique features, making it a preferred choice for professionals seeking reliable clamping solutions.
