Stay Flap Fitting, for Blum Aventos HK-Top Tip-On stay flap fitting - 372.85.677 by Hafele — Designed for one-piece flaps, it provides secure and easy usage. Durable steel material ensures long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

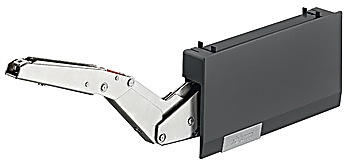

The Stay Flap Fitting, for Blum Aventos HK-Top Tip-On stay flap fitting - 372.85.677 by Hafele represents a refined fusion of quality and functionality. This fitting is specifically designed for one-piece flaps made from wood or with an aluminum frame. It features a tool-free front panel installation thanks to the clip system. Additionally, the opening and closing force can be continuously adjusted at the lift mechanism, and the multi-position stop ensures the flap locks reliably in any position.

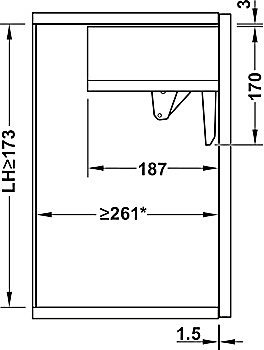

Constructed from steel, this fitting boasts a zinc-plated finish for durability. It accommodates flaps with an opening angle of up to 107 degrees and is suitable for cabinet widths of up to 1800 mm. Designed for flap heights ranging from 205 to 600 mm, it can support a lid weight of up to 18 kg when using two lift mechanisms. The installation depth is 187 mm, and it provides a 3-dimensional adjustment facility for continuous adjustment of opening and closing forces.
This product's unique advantages include tool-free installation and continuously adjustable opening-closing force. These features enhance user comfort while simplifying the installation process.
