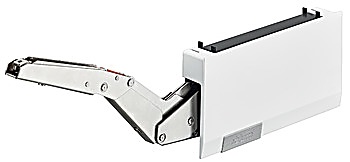

Stay Flap Fitting, for Blum Aventos HK-Top Tip-On stay flap fitting - 372.85.657 by Hafele — This fitting is designed for one-piece flaps made from wood or with an aluminum frame, providing easy installation. Its durable steel construction ensures long-lasting use.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Stay Flap Fitting, for Blum Aventos HK-Top Tip-On stay flap fitting - 372.85.657 by Hafele represents a refined fusion of quality and functionality. This fitting is specifically designed for one-piece flaps made from wood or with an aluminum frame. The front panel installation is tool-free, thanks to the clip system. The opening and closing forces are continuously adjustable at the lift mechanism, and the multi-position stop feature ensures the flap locks reliably in any position.

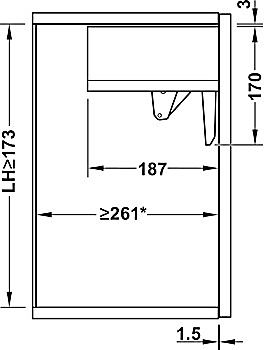

Constructed from durable steel and finished with zinc plating, this fitting offers an opening angle of up to 107 degrees. It is suitable for cabinet widths of up to 1800 mm and heights ranging from 205 to 600 mm. With two lift mechanisms, it can support a lid weight of up to 18 kg. The installation depth is 187 mm, and it provides a 3-dimensional adjustment facility. For wide cabinets, a fitting attached to the center panel is recommended to prevent sagging of the front panel in the open position.
The Hafele Stay Flap Fitting stands out with its user-friendly design and durable materials. Its ease of installation and adjustable features make it a preferred choice for various applications.
