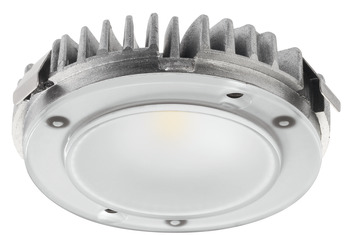

Light moduleLoox LED 2025 12 V modular drill hole ⌀ 58 mm aluminium - 833.72.350
Light

Light moduleLoox LED 2025 12 V modular drill hole ⌀ 58 mm aluminium - 833.72.350

HAFELE

Download Product Files

Light moduleLoox LED 2025 12 V modular drill hole ⌀ 58 mm aluminium - 833.72.350 by Hafele — a high-efficiency modular lighting solution.

Properties

Product Code: 833.72.350
Category: Light

Material Properties

Used Material:
Aluminium
Durability:
L80/B10 >50,000 h, L70/B50 >80,000 h

Product Attribute Symbols
Dimensions

Length (cm): 5.8
Width (cm): 5.8
Height (cm): 5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • ISO_27001_TR
  • ISO_27001_ENG
  • 833.72.350_RU EAC RoHS Certificate
  • Güvenlik Notları--Security Notes
  • 833.72.350_RU EAC Certificate
  • ISO_9001_TR
  • 833.72.350_Safety data sheet
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

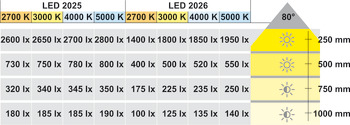

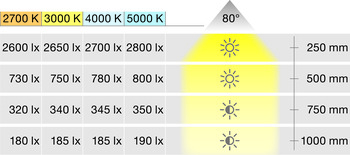

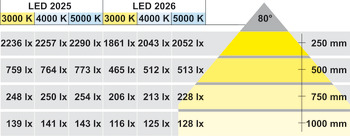

The Light moduleLoox LED 2025 12 V modular drill hole ⌀ 58 mm aluminium - 833.72.350 by Hafele represents a refined fusion of quality and functionality. This modular light module is designed for mounting in drilled holes of 58 mm diameter and is made from lightweight yet durable aluminium. With a nominal voltage of 12V and a wattage of 3.80W, it offers high energy efficiency. Additionally, it features a refraction angle of 80°, providing a wide illumination area.

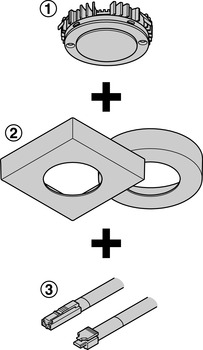

Thanks to its modular design, it can be customized with various design options to meet user needs. The integrated cable socket allows for quick conversions, making installation straightforward. With an IP45 protection rating for recessed mounting and IP20 for surface mounting, it can be safely used in indoor environments. Its lifespan exceeds 50,000 hours for L80/B10 and 80,000 hours for L70/B50, ensuring long-term use.



Hafele's Light moduleLoox LED 2025 stands out with its sleek design and high efficiency, making it a preferred choice for various applications.
