Bessey Revo Body Clamp - 003.72.206

HAFELE

Bessey Revo Body Clamp - 003.72.206 by Hafele — A reliable solution for strong clamping and spreading in precision tasks.

Properties

Product Code: 003.72.206
Category: Clamps & Grips

Material Properties

Used Material:
Housing: Polyamide, metal-reinforced Handle: Two-component plastic Rail: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 9.5
Width (cm): 25.5
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
003.72.206_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

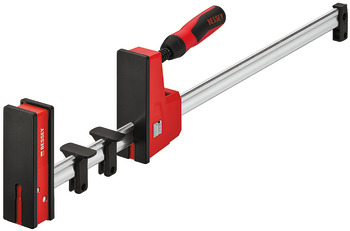

The Bessey Revo Body Clamp - 003.72.206 by Hafele represents a refined fusion of quality and functionality. With an overhang length of 95 mm, this clamp belongs to the REVO model series and is designed for generally precise clamping or spreading with strong force. It effectively holds workpieces in parallel with a strong clamping force, and it can also be used behind and alongside rails, as well as on pointed and round surfaces. The maximum clamping force is applied using a hex key in the rotary handle.

This body clamp can be reconnected without tools, adding to its user-friendly design. The counter holder at the bottom is also movable, enhancing its versatility. It features very large parallel clamping surfaces with three removable glue-repellent, paint-resistant, and solvent-resistant protective caps on the clamping surfaces. Additionally, it comes with three spacers fitted to the rail to avoid contact between the rail and workpiece. The sliding bracket is equipped with double anti-slip protection, ensuring that the clamping force is retained and that the sliding bracket cannot slip unintentionally in the unclamped condition.

The Bessey Revo Body Clamp stands out with its robust and durable design, making it an essential tool for professionals.
